Soluciones híbridas de energía

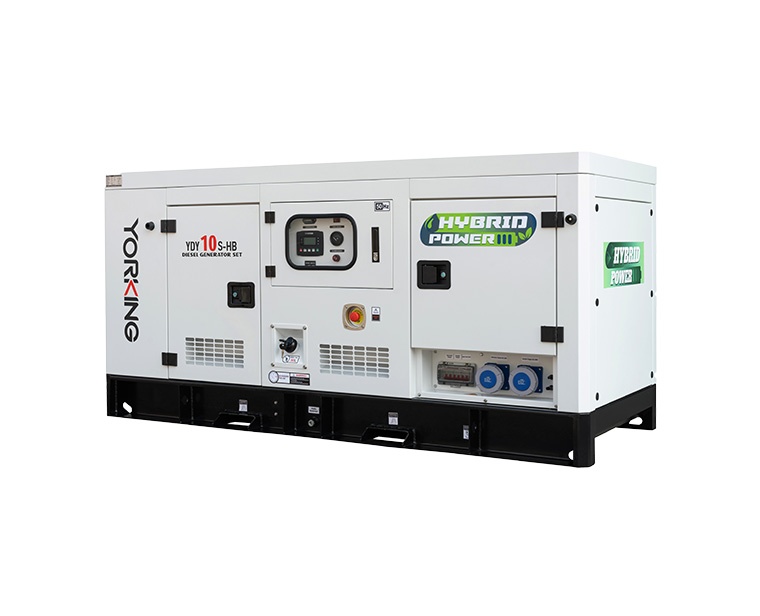

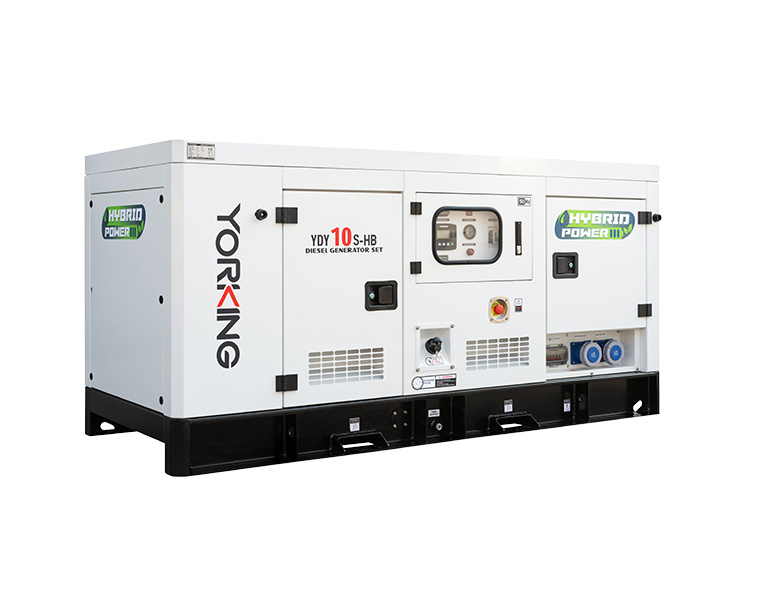

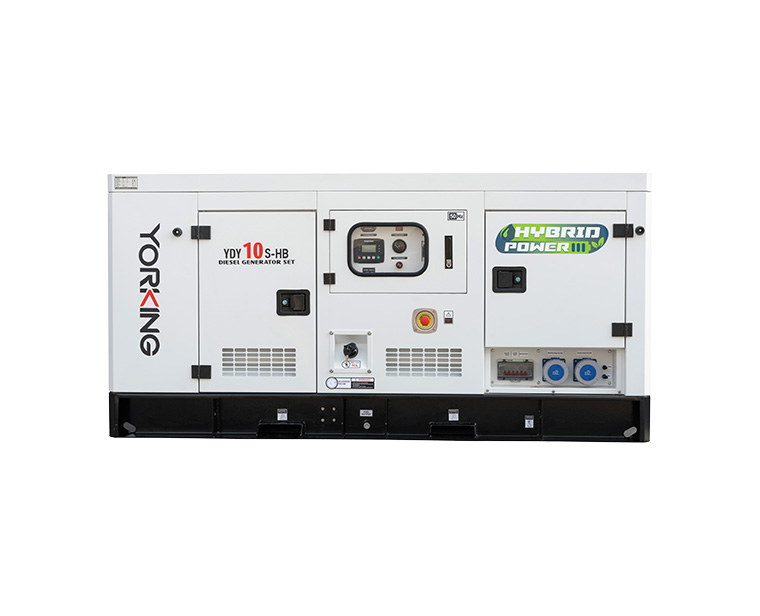

Generador de energía híbrido

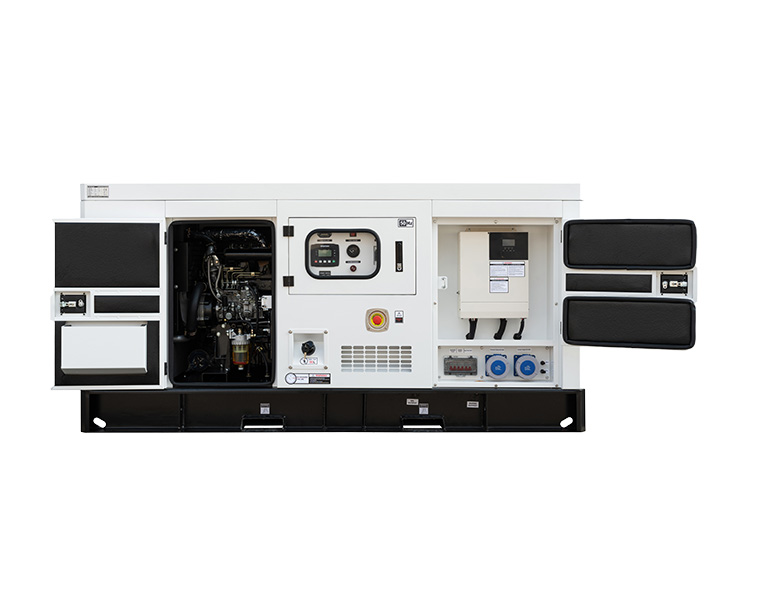

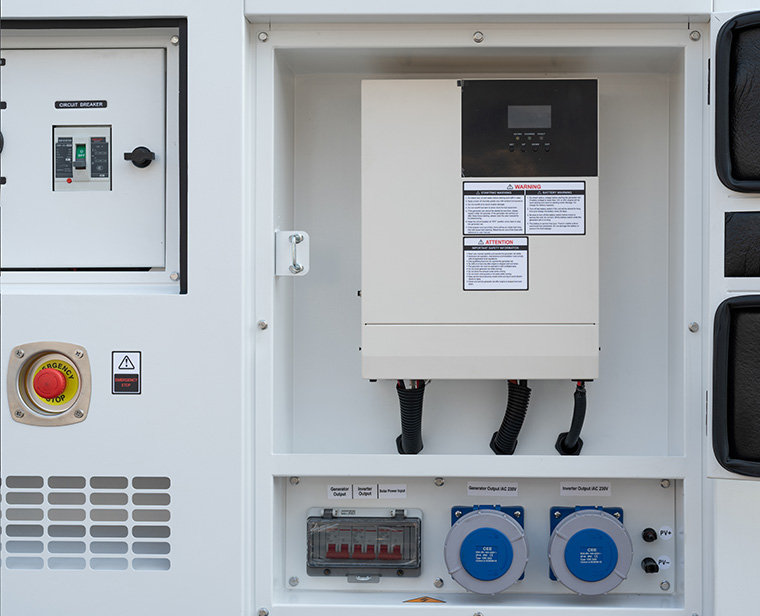

Los sistemas de energía híbrida de Yorking son soluciones ideales para aplicaciones fuera de la red, diseñadas para reducir el consumo de combustible y el ruido del motor. Integran generadores diésel, paquetes de baterías, inversores y fuentes de energía fotovoltaica (PV) opcionales.



Cuando los generadores están en funcionamiento y la carga lo permite, cargan simultáneamente las baterías. Además, las baterías también pueden cargarse directamente a través del sistema fotovoltaico.



Si la carga es inferior a la capacidad del inversor, el funcionamiento prolongado del generador a baja carga puede acortar la vida útil del motor. En esos casos, lo más eficiente es alimentar directamente con las baterías.



Cuando la capacidad de las baterías baja al 30 %, el generador se enciende automáticamente para recargarlas, o el usuario puede optar por recargarlas mediante el sistema PV.



Estas soluciones reducen significativamente los costos energéticos, las emisiones y el ruido, y ofrecen una alternativa ecológica, eficiente y fácil de usar.



Parámetros YD10S-HB5-F YD10S-HB10-F YD20S-HB10-F YD20S-HB15-F YD20S-HB20-F YD20S-HB40-F
Sistema de generación diésel
Potencia nominal kVA/kW 10 10 20 20 20 20
Frequency Hz 50 50 50 50 50 50
Número de fases   1 1 1 1 1 1
Nivel ruido (batería) dBA@7m>   68 68 68 68 68 68
Nivel ruido (híbrido) dBA@7m>   50 50 50 50 50 50
Voltaje AC V 230 230 230 230 230 230
Corriente A 43 43 87 87 87 87
Capacidad del tanque de combustible L 90 90 110 110 110 110
Dimensiones mm 2350*1000*1150 2350*1000*1150 2800*1100*1150 2800*1100*1150 2800*1100*1150 2800*1100*1400
Peso Seco kg 750 800 950 1000 1050 1250
Motor diésel
Marca   YTO YTO YTO YTO YTO YTO
Modelo   YD480D YD480D YD495D YD495D YD495D YD495D
Potencia nominal kW 14 14 27 27 27 27
Alternador
Marca   Yorking Yorking Yorking Yorking Yorking Yorking
Modelo   Y164C Y164C Y184EF Y184EF Y184EF Y184EF
Potencia nominal kW 10 10 20 20 20 20
Controlador
Marca   Smartgen Smartgen Smartgen Smartgen Smartgen Smartgen
Modelo   HGM4020N HGM4020N HGM4020N HGM4020N HGM4020N HGM4020N
Sistema de batería
Capacidad total almacenamiento kWh 5 10 10 15 20 40
Tipo de batería   LFP (LiFePO4) LFP (LiFePO4) LFP (LiFePO4) LFP (LiFePO4) LFP (LiFePO4) LFP (LiFePO4)
Capacidad de la batería kWh 5.12 5.12 5.12 5.12 5.12 5.12
Cantidad de baterías   1 2 2 3 4 8
Voltaje de la batería DC V 48 48 48 48 48 48
Parámetros YD10S-HB5-S YD10S-HB10-S YD20S-HB10-S YD20S-HB15-S YD20S-HB20-S YD20S-HB40-S
Sistema de generación diésel
Potencia nominal kVA/kW 10 10 20 20 20 20
Frequency Hz 60 60 60 60 60 60
Número de fases   1 1 1 1 1 1
Nivel ruido (batería) dBA@7m>   68 68 68 68 68 68
Nivel ruido (hbrido) dBA@7m>   50 50 50 50 50 50
Voltaje AC V 120V/240V 120V/240V 120V/240V 120V/240V 120V/240V 120V/240V
Corriente A 41.6 41.6 83.3 83.3 83.3 83.3
Capacidad del tanque de combustible L 90 90 110 110 110 110
Dimensiones mm 2350*1000*1150 2350*1000*1150 2800*1100*1150 2800*1100*1150 2800*1100*1150 2800*1100*1400
Peso seco kg 750 800 950 1000 1050 1250
Motor diésel
Marca   YTO YTO YTO YTO YTO YTO
Modelo   YD480D YD480D YSD490D YSD490D YSD490D YSD490D
Potencia nominal kW 16 16 25 25 25 25
Alternador
Marca   Yorking Yorking Yorking Yorking Yorking Yorking
Modelo   Y164B Y164B Y184E Y184E Y184E Y184E
Potencia nominal kW 11 11 23 23 23 23
Controlador
Marca   Smartgen Smartgen Smartgen Smartgen Smartgen Smartgen
Modelo   HGM4020N HGM4020N HGM4020N HGM4020N HGM4020N HGM4020N
Sistema de batería
Capacidad total almacenamiento kWh 5 10 10 15 20 40
Tipo de batería   LFP (LiFePO4) LFP (LiFePO4) LFP (LiFePO4) LFP (LiFePO4) LFP (LiFePO4) LFP (LiFePO4)
Capacidad de la batería kWh 5.12 5.12 5.12 5.12 5.12 5.12
Cantidad de baterías   1 2 2 3 4 8
Voltaje de la batería DC V 48 48 48 48 48 48
