Grupos electrógenos diésel industriales
Serie WEICHAI 16-1100KVA
Weichai Group es uno de los principales fabricantes de soluciones energéticas en China, reconocido mundialmente por su innovación tecnológica y su capacidad industrial avanzada. Sus motores son valorados por su eficiencia de combustible, potencia robusta y excelente durabilidad.

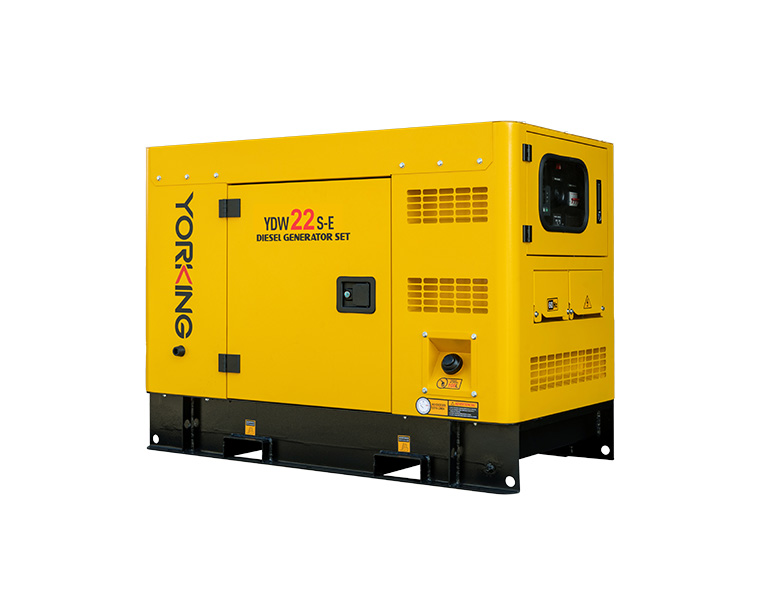

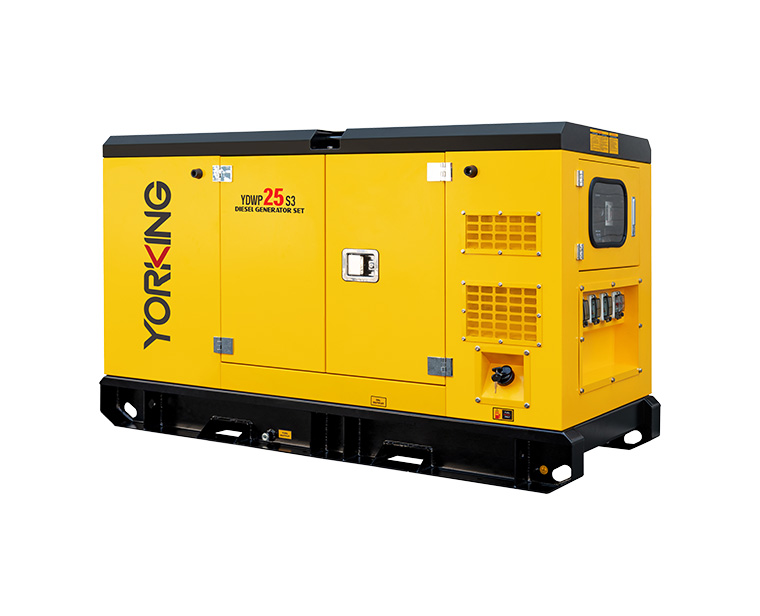

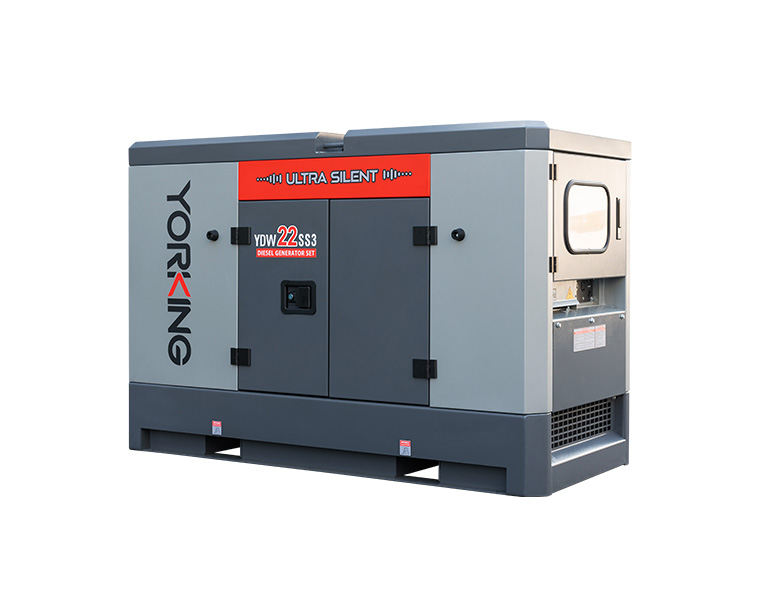

Los grupos electrógenos Yorking equipados con motores Weichai ofrecen una gama de 16 kVA a 1100 kVA, adecuados para aplicaciones industriales, comerciales e incluso centrales eléctricas, donde se requiere un suministro energético confiable y eficiente.
| Modelo | Primaria | Reserva | Motor | Alternador | Dimensiones(LxWxH)(MM) | ||||
| kVA | kW | kVA | kW | Modelo | Regulador | Modelo | Silencioso | ||
| Monofásico | |||||||||
| YDWP22E/S-E/S/SS | 16 | 16 | 22 | 22 | WP2.3D25E200 | E | Y184E/1P | 1948*900*1150 | |
| YDWP26E/S-E/S/SS | 24 | 24 | 26 | 26 | WP2.3D33E200 | E | Y184G/1P | 2218*930*1150 | |
| Trifásico | |||||||||
| YDWP22E3/S-E3/S3/SS3 | 20 | 16 | 22 | 17 | WP2.3D25E200 | E | Y184E | 1948*900*1150 | |
| YDWP33E3/S-E3/S3/SS3 | 30 | 24 | 33 | 26 | WP2.3D33E200 | E | Y184G | 2218*930*1150 | |
| YDWP41E3/S-E3/S3/SS3 | 38 | 30 | 44 | 35 | WP2.3D40E200 | E | Y184H | 2218*930*1150 | |
| YDWP50E3/S-E3/S3/SS3 | 45 | 36 | 50 | 40 | WP2.3D48E200 | E | Y224DS | 2520*1050*1200 | |
| YDWP68E3/S-E3/S3/SS3 | 62 | 50 | 68 | 55 | WP4.1D66E200 | E | Y224E | 2600*1050*1200 | |
| YDWP83E3/S-E3/S3/SS3 | 75 | 60 | 83 | 66 | WP4.1D80E200 | E | Y224G | 2600*1050*1200 | |
| YDWP110E3/S-E3/S3/SS3 | 100 | 80 | 110 | 88 | WP4.1D113E200 | E | Y274C | 2660*1050*1500 | |
| YDWP138E3/S3 | 125 | 100 | 138 | 110 | WP6D132E200 | E | Y274DS | 3100*1150*1700 | |
| YDWP158E3/S3 | 144 | 115 | 158 | 127 | WP6D152E200 | E | Y274FS | 3100*1150*1700 | |
| YDWP206E3/S3 | 188 | 150 | 206 | 165 | WP10D200E200 | E | Y274H | 3750*1320*2000 | |
| YDWP250E3/S3 | 225 | 180 | 250 | 200 | WP10D238E200 | E | Y274J | 3750*1320*2000 | |
| YDWP275E3/S3 | 250 | 200 | 275 | 220 | WP10D264E200 | E | Y274K | 3900*1450*2020 | |
| YDWP350E3/S3 | 313 | 250 | 350 | 280 | WP10D320E200 | E | Y4ES | 4060*1480*2050 | |
| YDWP400E3/S3 | 375 | 300 | 400 | 320 | WP13D385E200 | E | Y4F | 4100*1550*2180 | |
| YDWP480E3/S3 | 437 | 350 | 480 | 385 | WP13D440E310 | CR | Y5C | 4160*1600*2220 | |
| YDWP550E3/S3 | 500 | 400 | 550 | 440 | WP13D490E310 | CR | Y5D | 4160*1600*2220 | |
| YDWP618E3/S3 | 562 | 450 | 618 | 495 | 6M33D572E200 | E | Y5ES | 5300*1800*2550 | |
| YDWP688E3/S3 | 625 | 500 | 688 | 550 | 6M33D633E200 | E | Y5FS | 5530*1860*2550 | |
| YDWP825E3/S3 | 750 | 600 | 825 | 660 | 6M33D725E310 | CR | Y6B | 5750*1900*2550 | |
| YDWP880E3/S3 | 800 | 640 | 880 | 700 | 12M26D792E200 | E | Y6C | ISO 20'ft HQ | |
| YDWP1000E3/S3 | 900 | 720 | 1000 | 800 | 12M26D902E200 | E | Y6D | ISO 20'ft HQ | |
| YDWP1100E3/S3 | 1000 | 800 | 1100 | 880 | 12M26D968E200 | E | Y6E | ISO 20'ft HQ | |
| Modelo | Primaria | Reserva | Motor | Alternador | Dimensiones(LxWxH)(MM) | ||||
| kVA | kWe | kVA | kWe | Modelo | Regulador | Yorking | Silencioso | ||
| Monofásico | |||||||||
| YDWP22E/S-E/S/SS | 20 | 20 | 22 | 22 | WP2.3D30E201 | E | Y184E/1P | 1948*900*1150 | |
| YDWP33E/S-E/S/SS | 30 | 30 | 33 | 33 | WP2.3D41E201 | E | Y184G/1P | 1948*900*1150 | |
| YDWP48E/S-E/S/SS | 44 | 35 | 48 | 39 | WP2.3D47E201 | E | Y184H/1P | 2218*930*1150 | |
| Trifásico | |||||||||
| YDWP28E3/S3-E/S3/SS3 | 25 | 20 | 28 | 22 | WP2.3D30E201 | E | Y184E | 1948*900*1150 | |
| YDWP41E3/S3-E/S3/SS3 | 37 | 30 | 41 | 33 | WP2.3D41E201 | E | Y184G | 1948*900*1150 | |
| YDWP47E3/S3-E/S3/SS3 | 43 | 35 | 47 | 38 | WP2.3D47E201 | E | Y184H | 2218*930*1150 | |
| YDWP55E3/S3-E/S3/SS3 | 50 | 40 | 55 | 44 | WP2.3D58E201 | E | Y184J | 2218*930*1150 | |
| YDWP85E3/S3-E/S3/SS3 | 75 | 60 | 85 | 68 | WP4.1D80E201 | E | Y224E | 2600*1050*1200 | |
| YDWP96E3/S3-E/S3/SS3 | 88 | 70 | 96 | 77 | WP4.1D95E201 | E | Y224F | 2600*1050*1200 | |
| YDWP118E3/S3-E/S3/SS3 | 108 | 86 | 118 | 95 | WP4.1D115E201 | E | Y274CS | 2660*1130*1520 | |
| E | |||||||||
| YDWP138E3/S3 | 135 | 100 | 138 | 110 | WP6D132E201 | E | Y274D | 3100*1150*1700 | |
| YDWP165E3/S3 | 150 | 120 | 165 | 132 | WP6D158E201 | E | Y274DS | 3100*1150*1700 | |
| YDWP206E3/S3 | 188 | 150 | 206 | 165 | WP10D200E201 | E | Y274F | 3750*1320*2000 | |
| YDWP250E3/S3 | 230 | 180 | 250 | 200 | WP10D238E201 | E | Y274G | 3750*1320*2000 | |
| YDWP275E3/S3 | 250 | 200 | 275 | 220 | WP10D264E201 | E | Y274J | 3900*1450*2020 | |
| YDWP385E3/S3 | 350 | 280 | 385 | 308 | WP10D360E201 | E | Y4D | 4000*1500*2180 | |
| E | |||||||||
| YDWP413E3/S3 | 375 | 300 | 413 | 330 | WP13D385E201 | E | Y4ES | 4100*1550*2180 | |
| YDWP500E3/S3 | 500 | 400 | 550 | 440 | WP13D510E311 | E | Y5C | 4160*1600*2220 | |
| YDWP619E3/S3 | 563 | 450 | 619 | 495 | 6M33D572E201 | E | Y5D | 5530×1900×2540 | |
| YDWP715E3/S3 | 650 | 520 | 715 | 572 | 6M33D633E201 | E | Y5ES | 5530×1900×2540 | |
| YDWP742E3/S3 | 675 | 540 | 742 | 594 | 6M33D670E201 | E | Y5ES | 5530×1900×2540 | |
| YDWP788E3/S3 | 718 | 575 | 788 | 630 | 6M33D710E311 | E | Y5FS | 5750×2000×2540 | |
| YDWP825E3/S3 | 750 | 600 | 825 | 660 | 6M33D740E311 | CR | Y5FS | 5750×2000×2540 | |
| YDWP880E3/S3 | 800 | 640 | 880 | 700 | 12M26D792E201 | E | Y5F | 5900×2250×2540 | |
| YDWP1000E3/S3 | 900 | 720 | 1000 | 800 | 12M26D902E201 | E | Y6C | 5900×2250×2540 | |
| YDWP1100E3/S3 | 1000 | 800 | 1100 | 880 | 12M26D1012E201 | E | Y6D | 5900×2250×2540 | |
| YDWP1250E3/S3 | 1125 | 900 | 1250 | 1000 | 12M33D1108E201 | E | Y6E | ISO 20'ft HQ | |
| YDWP1375E3/S3 | 1250 | 1000 | 1375 | 1100 | 12M33D1265E201 | E | Y6F | ISO 20'ft HQ | |
| YDWP1500E3/S3 | 1365 | 1100 | 1500 | 1200 | 12M33D1320E201 | E | Y6G | ISO 40'ft HQ | |
| YDWP1650E3/S3 | 1500 | 1200 | 1650 | 1320 | 12M33D1420E201 | E | Y7E | ISO 40'ft HQ | |
| YDWP1925E3/S3 | 1706 | 1400 | 1925 | 1540 | 16M33D1680E311 | ECU | Y7F | ISO40'ft HQ | |
| YDWP2063E3/S3 | 1875 | 1500 | 2063 | 1650 | 16M33D1785E311 | ECU | Y7F | ISO40'ft HQ | |
